Alarm dialer with output control

For receiving fault messages and remote switching

CM4042

Mobeye CM-Guard-42

The Mobeye CM4042 is the alarm module with four potential-free inputs and two relay outputs. A reliable alarm and control module for monitoring sensors and remotely controlling devices. In an alarm situation and in the event of a status change, the CM4042 informs contacts via app, telephone call, SMS or e-mail.

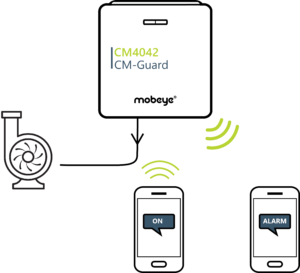

Alarm module with output control to monitor sensor and switch device

The CM4042 has four input channels and two output relays, with a built-in 2G/4G communication module. Potential-free sensors and fault contacts can be connected to the inputs. The outputs are switchable via SMS command. The configuration gives many possibilities to customise this telemetry module to one’s own needs.

Potentialfree alarm inputs

The Mobeye CM4042 has four NO/NC inputs, for the connection of alarm contacts and sensors. It monitors the status of a device or external sensor, and monitors the functioning of a machine or the condition of sensors. Apart from make/break contacts, output signals between 0 and 48V can also be seen as alarm event. Please refer to this documentation.

Relais outputs

The Mobeye CM4042 has two relay outputs for controlling devices. These are bistable relays, capable of switching max 30V/1A. Switching is done via SMS command. Setting a pulse time for the output relay switches it off automatically, also separate SMS commands can be used for ‘on’ and ‘off’.

External voltage vs battery powered

If the CM4042 is powered externally (>10VDC), the communication module is always connected to the mobile network. The relay can then be controlled remotely via SMS. The alarm detector can also operate for long periods on batteries only. The inputs are then still monitored.

Power failure alarm

When using an external voltage source, the Mobeye CM4042 also monitors the presence of the power supply. It sends notifications via push message, voice call, SMS and/or e-mail. A regulated 12-24V DC voltage source or a mains adapter can be connected to the voltage input. As soon as the voltage is lost, the internal batteries take over and a message follows. The input contacts and connected sensors continue to be monitored. Once the power restores, a notification will be sent.

Alarm forwarding and optimum security

In the event of an alarm, the Mobeye CM4042 sends alarm notifications by app (IOS/Android), telephone call (voice message), text message and/or e-mail. For the push messages there is a choice between an escalation plan or group message. With the escalation plan, the recipient can confirm the push message, so that the other contacts no longer receive the message. If none of the recipients confirms the push message, a phone call is made. The number of contacts is unlimited.

The Mobeye SIM card gives the device full functionality, including the use of the Mobeye Internet Portal and the app. With the Mobeye SIM card, communication takes place over the 4G LTE-M network with 2G as fallback.
When you insert your own SIM card, the device works primarily on 2G. With a suitable LTE-M SIM card and correct APN settings also on 4G LTE-M. With the proprietary SIM card, alarm notifications are sent via SMS to up to 5 phone numbers.

Version for outdoor use

The CM4042 has an indoor housing. The Mobeye CM4042X is the version with outdoor housing (IP66).

Mobeye CM-Guard-42
Applications
  • Monitoring of NO/NC contacts
  • Machine monitoring
  • Device control
  • Pump control

Reliable telemetry module

  • Alarm via app, call, SMS and email
  • Four alarm inputs (NO/NC)
  • Two relay outputs
  • Power failure monitoring
  • Full insight into device when connected to Mobeye Internet Portal

CM4042

Mobeye CM-Guard-42

Summary of features

Functions

  • 4x NO/NC alarm inputs
  • 2x relay outputs (bistable, max 30V/1A)
  • power failure monitoring

Alarming

  • to private contacts via an app, call, SMS and/or email, or to an emergency room (ARC)

Messages

  • input alarm, (optional) alarm reset
  • power outage and power recovery
  • battery low voltage, (missed) test message

Other settings

  • delay time on input and power failure alarm
  • inputs adjustable as NO or NC
  • alarm recovery on inputs
  • pulse time for output relays
  • alarm repeat interval
  • identification text, alarm texts
  • automatic switch-on and switch-off times
  • energy saving mode at external voltage

Mobeye SIM card (option)

  • online activation
  • gives access to Mobeye Internet Portal and App
  • communication via 4G LTE-M and 2G Quadband EGSM
  • low-cost, flat-fee, multi-provider

Mobeye Internet Portal and App
(when using Mobeye SIM card)

  • alarm per push messages/SMS/call/email/ARC
  • push messages as group message or sequential
  • status display
  • online programming
  • keep-alive monitoring
  • position display (Cell-ID)

Own SIM card (option)

  • alarm notifications via SMS text message and call to max. 5 contacts
  • communication via 2G/4G LTE-M

Power supply

  • 12-24V DC + 2x CR123, or
  • 2x CR123

Battery life

  • 1 year (if battery-operated)
  • 3 years (external power)

Communication module

  • 4G LTE-M (WW) + 2G Quadband EGSM 850/900/1800/1900 MHz

Contents

  • CM4042
  • 2x CR123 batteries
  • Mobeye SIM card (optional use)

Product versions

  • CM4042 – IP44 (for indoor use
  • CM4042X – IP66 (for outdoor use)

Dimensions

  • CM4042: 94 x 94 x 28 mm
  • CM4042: 130 x 180 x 35 mm

Accessories

  • mains adapter (PSU) – country specific, external antenna
